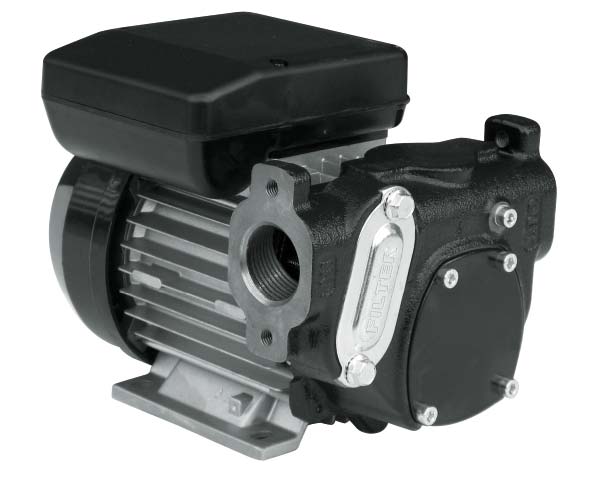

Diesel Fuel Transfer Pump PIUSI Panther 56 (120V, 15 GPM) F00730410

Diesel Fuel Transfer Pump PIUSI Panther 56 (120V, 15 GPM) F00730410.*

Diesel transfer electric pump. Displacement, self-priming rotary electric vane pumps.
Fitted with by-pass valve and elevated reliability seal even at low working temperatures. Compact and easy to install they are ideal for dispensers, fixed fuel transferring systems and other industrial applications. Sturdy cast iron structure, vane pump with sintered steel rotor and acetal resin vanes, induction motor with aluminium casing.
Suitable for continuous use with thermal motor overload protection.

→ 120V
→ 15 GPM (57 LPM)
→ Vane pump with rotor.
→ By-pass valve incorporated into the pump body.

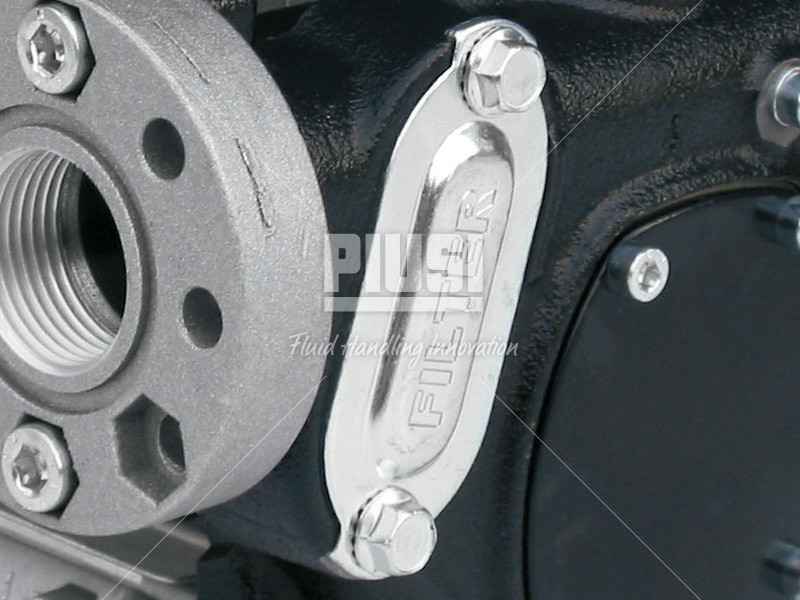

→ Integrated steel filter 100 micron
→ Inlet/Outlet 1" NPT
→ Integrated On/Off switch

- Suction height using hose 1":
w/o non return valve 7ft (2m)
with return valve 14ft (4m)
horizontal suction 20ft (6m)

- 7,5A, RPM 2400
- IP55
- Continuous AC operation.
- Noise level below 75 dB
- Packaging inch: 13 x 7 x 11

*Product image for illustration purposes only. Actual product may vary.
