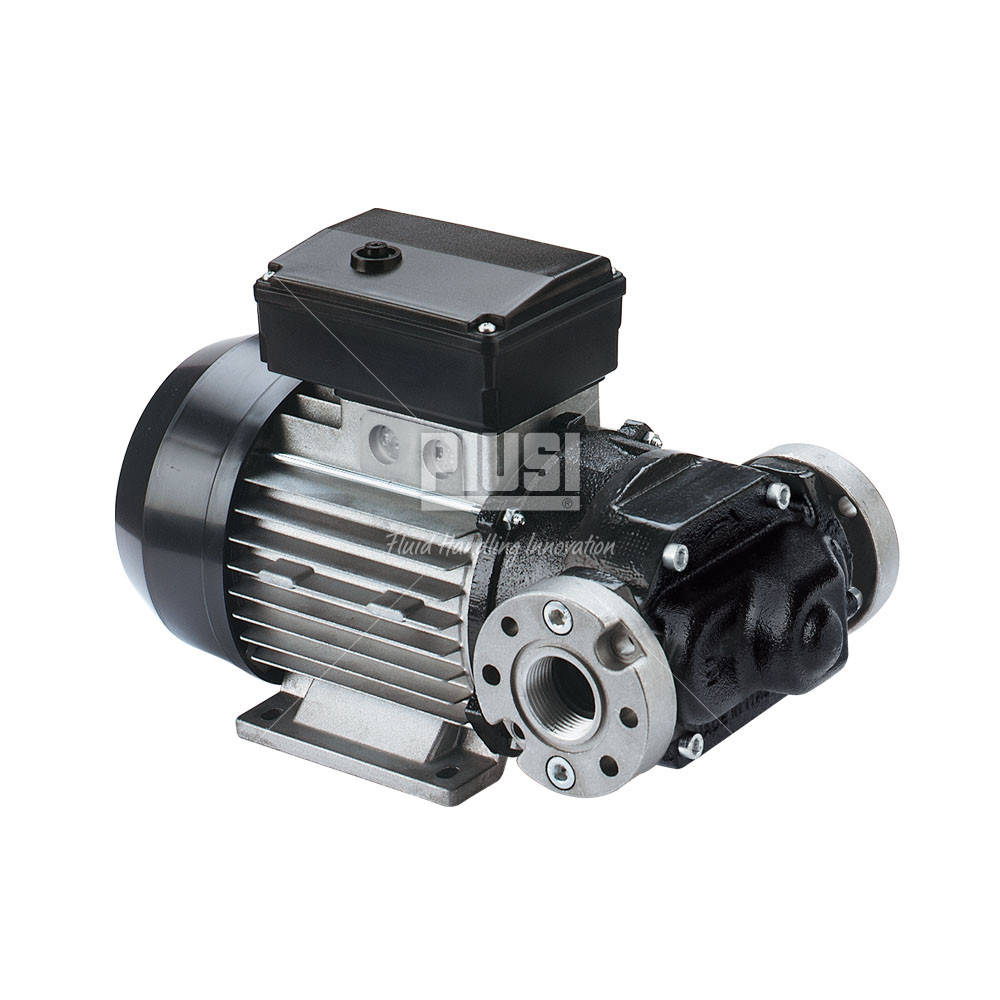

Diesel Fuel Transfer Pump PIUSI E120 (120V, 30 GPM) F0032701B

Diesel Fuel Transfer Pump PIUSI E120 (120V, 30 GPM) F0032701B.*

Heavy-duty, high flow diesel transfer.
Diesel transfer electric pump. Displacement, self-priming rotary electric vane pumps.
Fitted with by-pass valve and elevated reliability seal even at low working temperatures. Compact and easy to install they are ideal for dispensers, fixed fuel transferring systems and other industrial applications.
Sturdy cast iron structure, vane pump with sintered steel rotor and acetal resin vanes, induction motor with aluminium casing. Suitable for continuous use with thermal motor overload protection.

Self-priming rotary vane pump.
Induction motor with heavy-duty aluminum casing with bypass valve.
Suitable for continuous use with thermal overload protection.

→ 120V
→ 30 GPM (113,5 LPM)

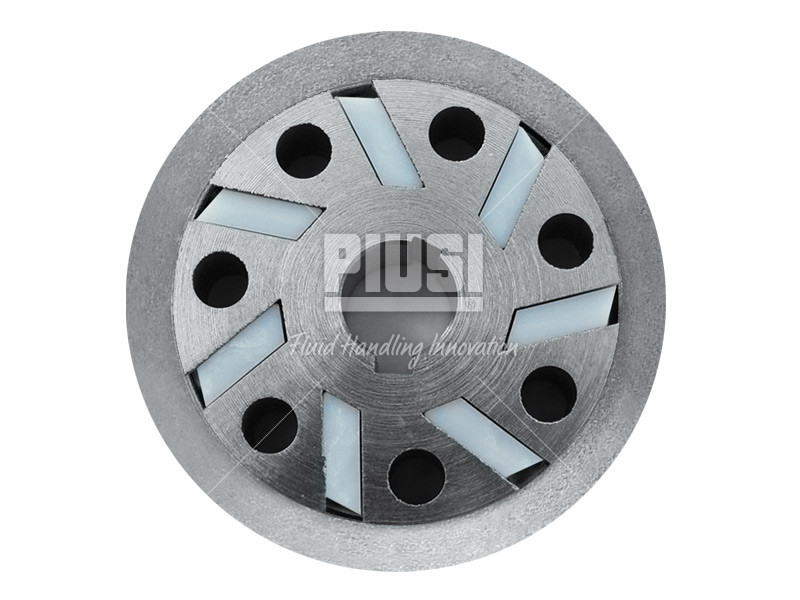

→ Vane pump with rotor.
→ By-pass valve incorporated into the pump body.
→ Inlet/Outlet 1" NPT flanged
→ Includes сable 13ft (4м)
→ Integrated On/Off switch

- 12A, RPM 1750
- IP55
- Continuous AC operation.
- Noise level below 70 dB
- Packaging inch: 13 x 7 x 11

*Product image for illustration purposes only. Actual product may vary.
