Heli-Pump Portable Aviation Pump

Heli-Pump Portable Aviation Pump
zoom Zoom image
Heli-Pump Portable Aviation Pump Heli-Pump Portable Aviation Pump Heli-Pump Portable Aviation Pump
Heli-Pump Portable Aviation Pump.
Compact, Lightweight and Portable

In use around the world by military special forces and helicopter operators, the Heli-Pump is a complete turnkey electric aviation fuel pumping system in a tiny package.  Designed for rapid deployment, the Heli-Pump quickly distributes fuel from almost any source and can be powered by the helicopter’s DC system.  It offers two-stage filtration, making it ideal for remote site operations.  When not in use, the Heli-Pump can be easily packed and stored inside the cargo area of most helicopters.  Choose from a variety of models to suit your needs. Ready-to-ship inventory of these pumps available.

Features

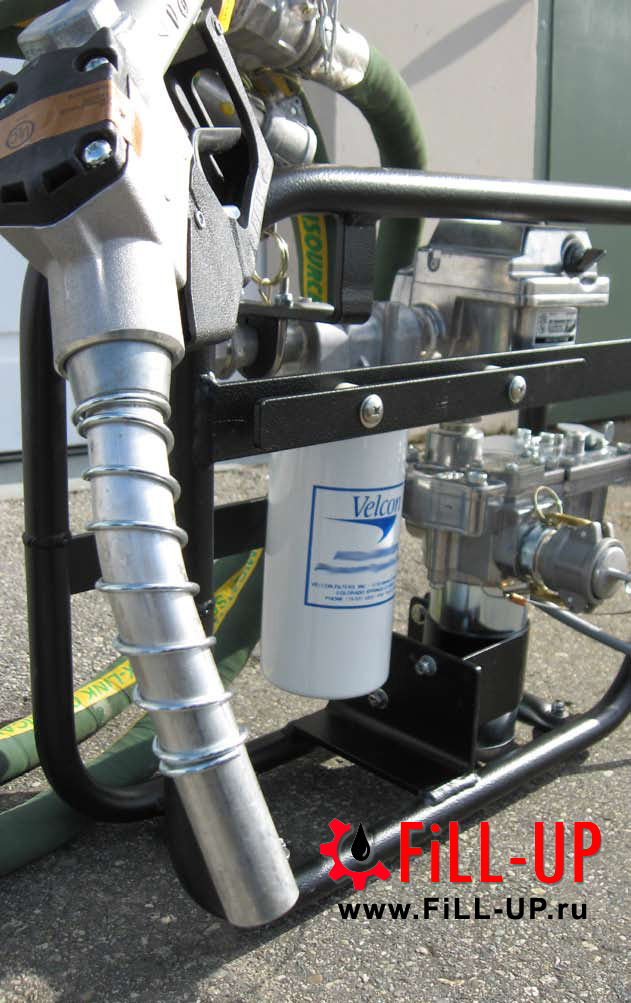

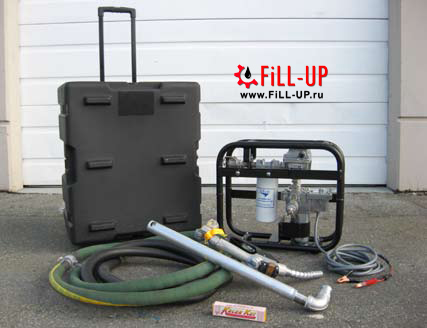

  • Monitor, filter, an electric pump, plus intake and delivery hoses and a lightweight anti-drip nozzle.
  • Operates from a vehicle battery or from the helicopter's own power supply.
  • Electric supply cable with clamps for connection to the power supply and in-line fuse.
  • Ground connection lug.
  • Powder-coated aluminum roll cage.

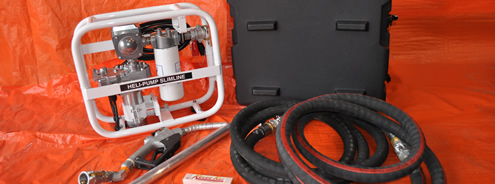

SlimLine Heli-Pump
  • 10 USGPM (37 LPM) 24 VDC, 10 AMP electric pump
  • Aviation spin-on filters
  • Leak-proof hard carrying case with lock
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Mechanical totalizing flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims without carrying case: 18” x 20.5” x 8.5” - 21 lbs (46 cm x 52 cm x 22 cm - 9.5 kg)
  • Total pump system dims with carrying case: 20” x 24” x 14” - 86 lbs (51 cm x 61 cm x 36 cm - 39 kg)

HR1210 Heli-Pump
  • 11 USGPM (41 LPM) 12 VDC, 25 AMP electric pump
  • Filter/separator
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Mechanical totalizing flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims: 20” x 23” x 17.5” - 60 lbs (51 cm x 58 cm x 45 cm - 27 kg)

HR 2410 Heli-Pump
  • 11 USGPM (41 LPM) 24 VDC, 10 AMP electric pump
  • Filter/separator
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Mechanical totalizing flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims: 20” x 23” x 17.5” - 60 lbs (51 cm x 58 cm x 45 cm - 27 kg)

HR2420 Heli-Pump
  • 20 USGPM (75 LPM) 24 VDC, 30 AMP electric pump
  • Filter/separator
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Mechanical totalizing flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims: 20” x 23” x 17.5” - 106 lbs (51 cm x 58 cm x 45 cm - 48 kg)
